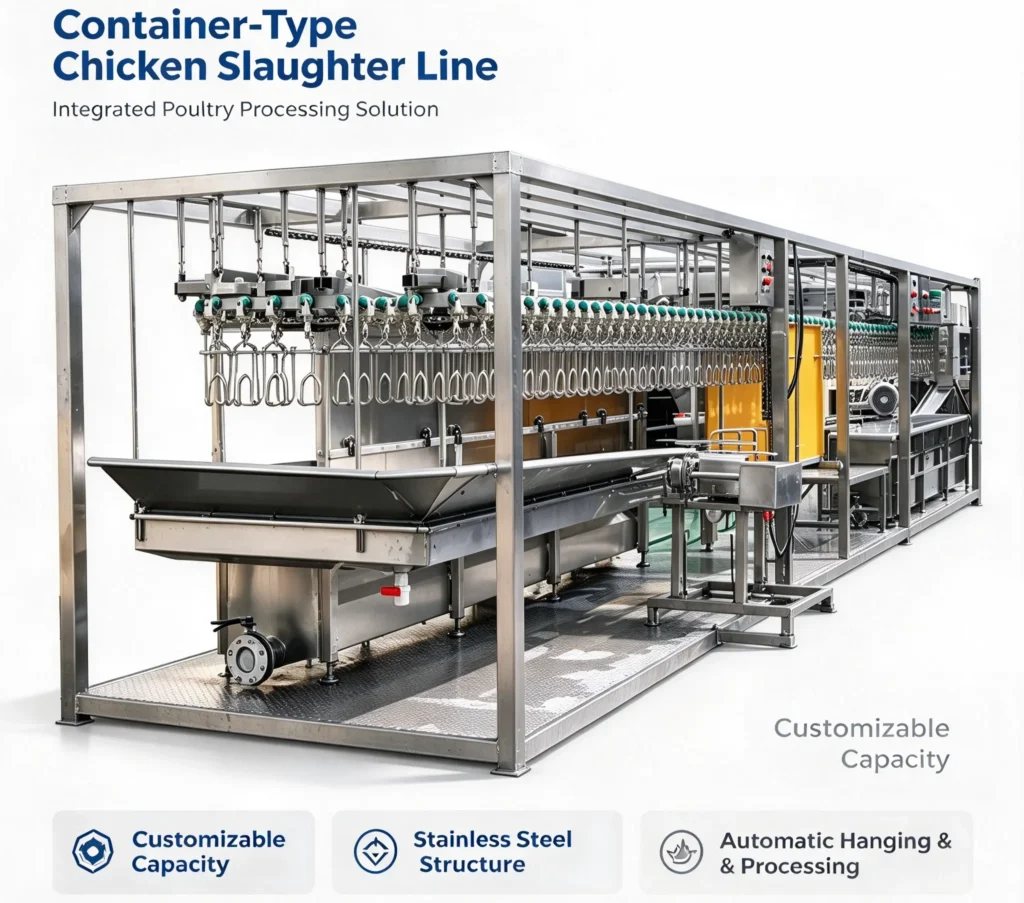

Chicken Slaughtering Processing Line

How This Production Line Works?

Live chicken hanging & slaughter bleeding: Live chickens are hung on overhead conveyor, automatic slaughter and blood draining.

Scalding & plucking: Hot water scalding then automatic feather removal by plucking machine.

Evisceration & inspection: Take out internal organs, manual inspection to remove unqualified carcasses.

Cutting, washing & pre-cooling: Carcass segmentation, cleaning and pre-chilling for fresh preservation.

Machine List:

• Machine 1：Slaughter Line — Function: Live chicken hanging, killing and blood collection.
• Machine 2：Plucking Machine — Function: Automatic defeathering after scalding, remove chicken feathers efficiently.
• Machine 3：Eviscerate and Cutting Machine — Function: Take out viscera, cut and separate chicken carcass.
• Machine 4：Pre-chilling Tank — Function: Rapidly cool chicken carcass to keep meat freshness.

Technical Parameters:

• Material: SUS304 stainless steel, food grade.
• Capacity: 300–3000 BPH customizable.
• Structure: Container integrated modular design.
• Shipment: Whole line fits into one 40HQ container.
• Feature: No complicated on-site installation, easy to move.

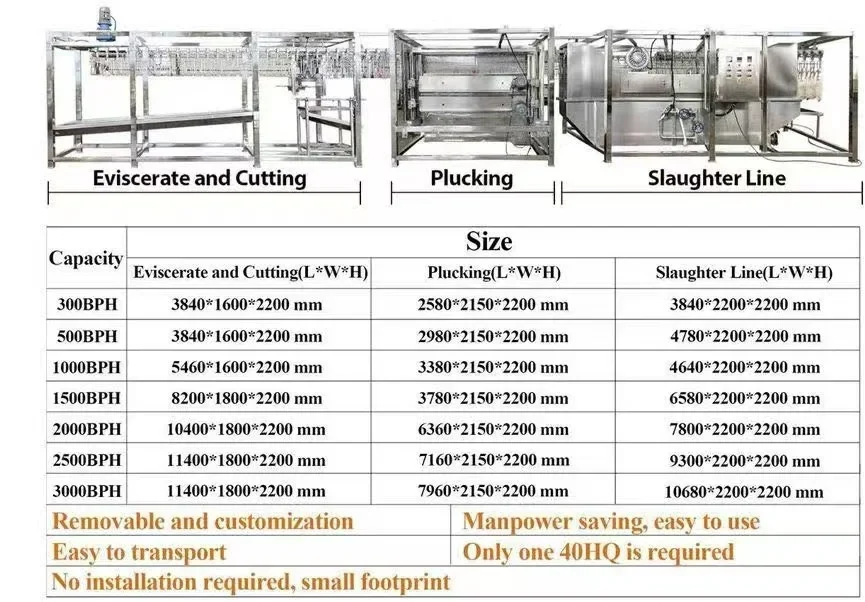

Layout Drawing:

We provide 2D layout drawing with exact dimensions for your whole-line order, help you arrange your factory reasonably.

Our Service:

• Voltage & frequency modification for local market.
• CE compliant configuration.
• Layout drawing design.
• Operation manual in English.
• Remote installation guidance & training.
• Long-term spare-parts supply.
• On-site engineer support optional.

FAQ:

Q1: What does BPH mean?

A: BPH = Birds Per Hour, it means how many chickens can be processed per hour. We have 300~3000BPH optional.

Q2: Is this container type slaughter line easy to transport?

A: Yes. The whole modular line can be loaded into one 40HQ container. No complicated assembly work after delivery.

Q3: What material is the machine?

A: All food contact parts adopt SUS304 stainless steel, fully meet food hygiene requirements.

Q4: Can you customize the capacity?

A: Sure. We can configure the whole line according to your required output, from small 300BPH to large 3000BPH.

Q5: Can you adjust the voltage for our country?

A: Yes, we can customize 50Hz / 60Hz, 220V / 380V /440V 3-phase power to match your local power grid.
