Pet Wet food Production Line

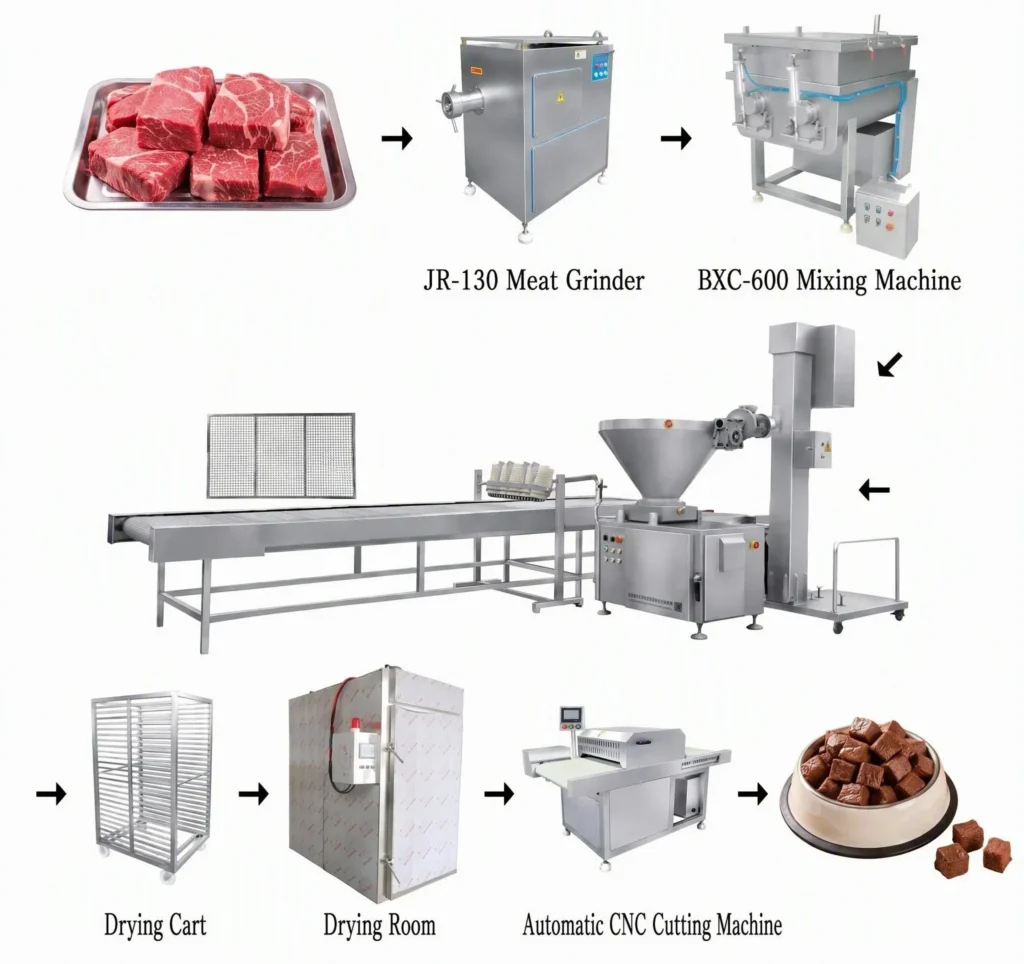

How This Production Line Works?

1. Raw meat grinding: JR-130 meat mincer grinds frozen/fresh meat into fine meat paste.
2. Mixing ingredients: BXC-600 mixer blends meat with vitamins, additives to uniform filling.
3. Vacuum extrusion forming: Auto feeder transports mixture to vacuum extrusion line to shape pet snacks.
4. Drying & cutting: Put formed snacks on drying trolley into drying room, then cut into fixed length by CNC cutter.

Machine List:

• Machine 1：JR-130 Meat Mincer — Function: Grind raw meat into fine meat paste.
• Machine 2：BXC-600 Mixer — Function: Mix meat, powder and additives evenly.
• Machine 3：Auto Feeder — Function: Automatic material feeding to extrusion machine.
• Machine 4：Vacuum Blade Extrusion & Forming Conveyor Line — Function: Shape uniform semi-moist pet snacks.
•  Machine 5：Drying Trolley — Function: Load net trays, transfer snacks into drying room.
• Machine 6：Drying Room — Function: Low temperature drying to get stable semi-moist texture.
• Machine 7：Automatic CNC Cutter — Function: Cut dried pet snacks into required size.

Technical Parameters:

• Material: SUS304 stainless steel, food grade
• Capacity: 100–1000 kg/h customizable

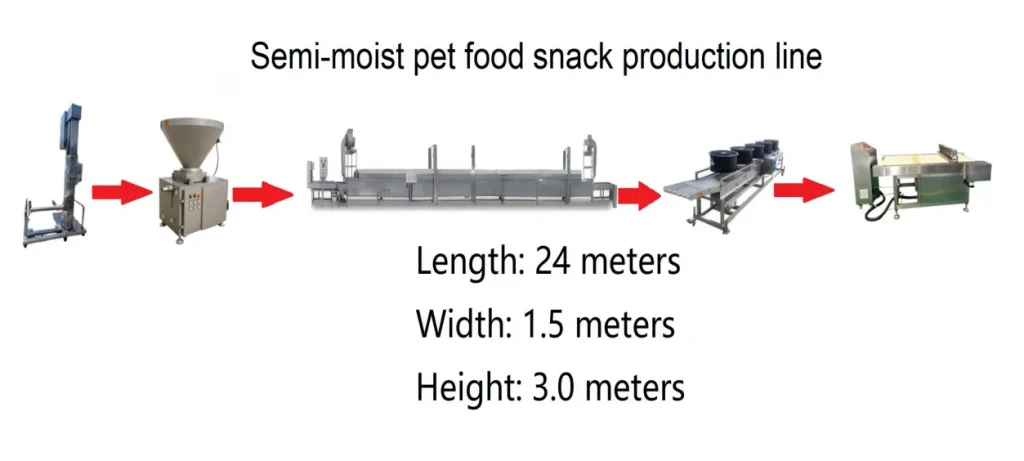

• Overall dimension: 24m(L) ×1.5m(W) ×3.0m(H)
• Product: Soft semi-moist dog treats, cat snacks

Layout Drawing:

We provide 2D layout drawing with exact dimensions for your whole-line order, help you arrange your factory reasonably.

Our Service:

• Voltage & frequency modification for local market.
• CE compliant configuration.
• Layout drawing design.
• Operation manual in English.
• Remote installation guidance & training.
• Long-term spare-parts supply.

FAQ:

Q1: What product can this line produce?

A: It can produce semi-moist soft pet snacks for dogs and cats, meat strip, meat stick pet treats.

Q2: Can we customize production capacity?

A: Yes, we can adjust the whole line configuration for 100~1000kg/h output.

Q3: Is the machine SUS304 stainless steel?

A: All parts touching raw materials adopt SUS304 stainless steel, meet food hygiene standard.

Q4: What is the total dimension of the whole line?

A: The standard line is 24m long ×1.5m wide ×3.0m high. We can modify length based on your workshop.

Q5: Can you change voltage for our country?

A: Yes, support 50Hz/60Hz, 3-phase voltage customization.
