Sausage Vacuum Stuffer & Sausage Clipper | Industrial Sausage Making Machine For Meat Plant

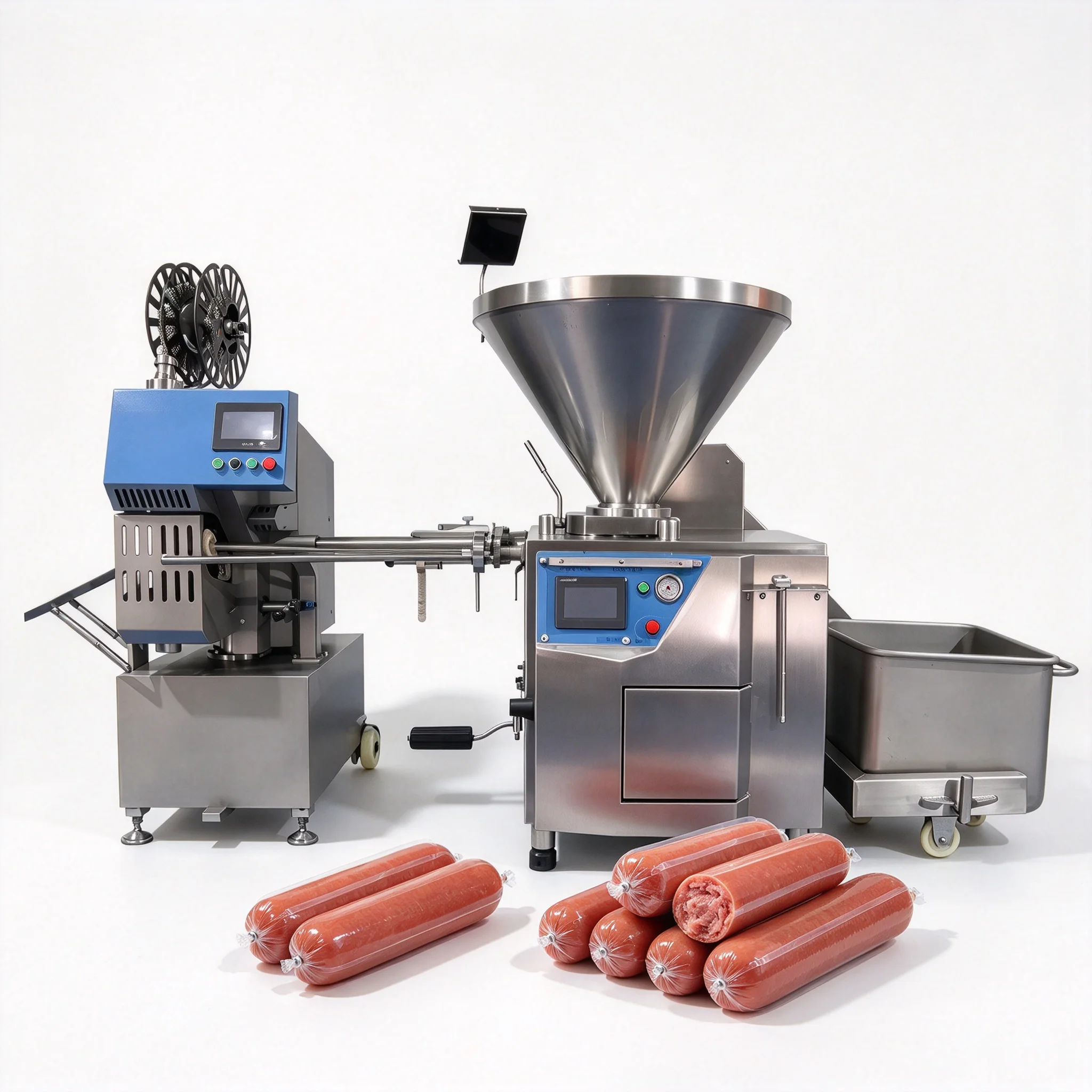

1.BG-6000 sausage vacuum stuffer with CSK-15 sausage clipper complete production line, finished sausage display

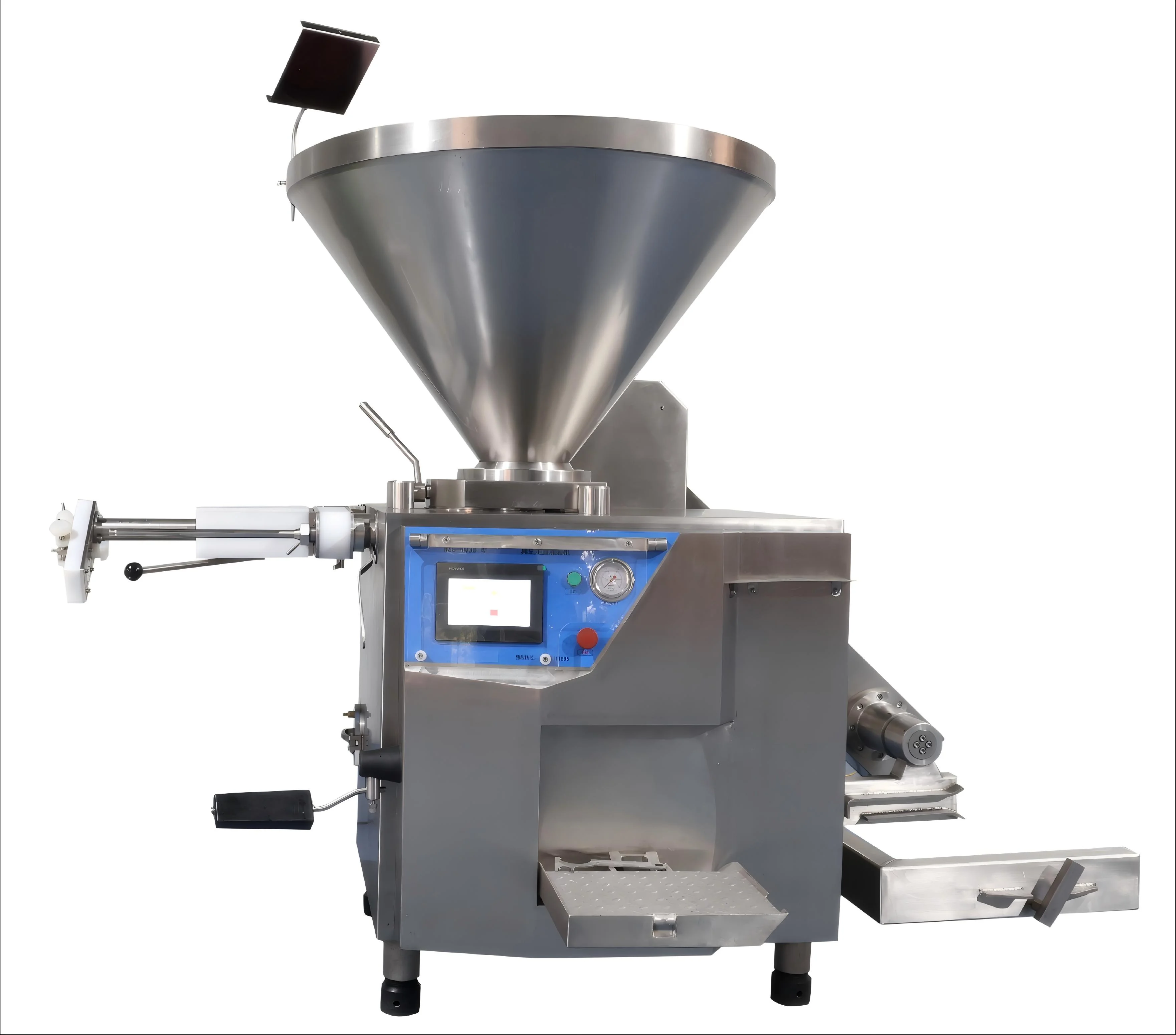

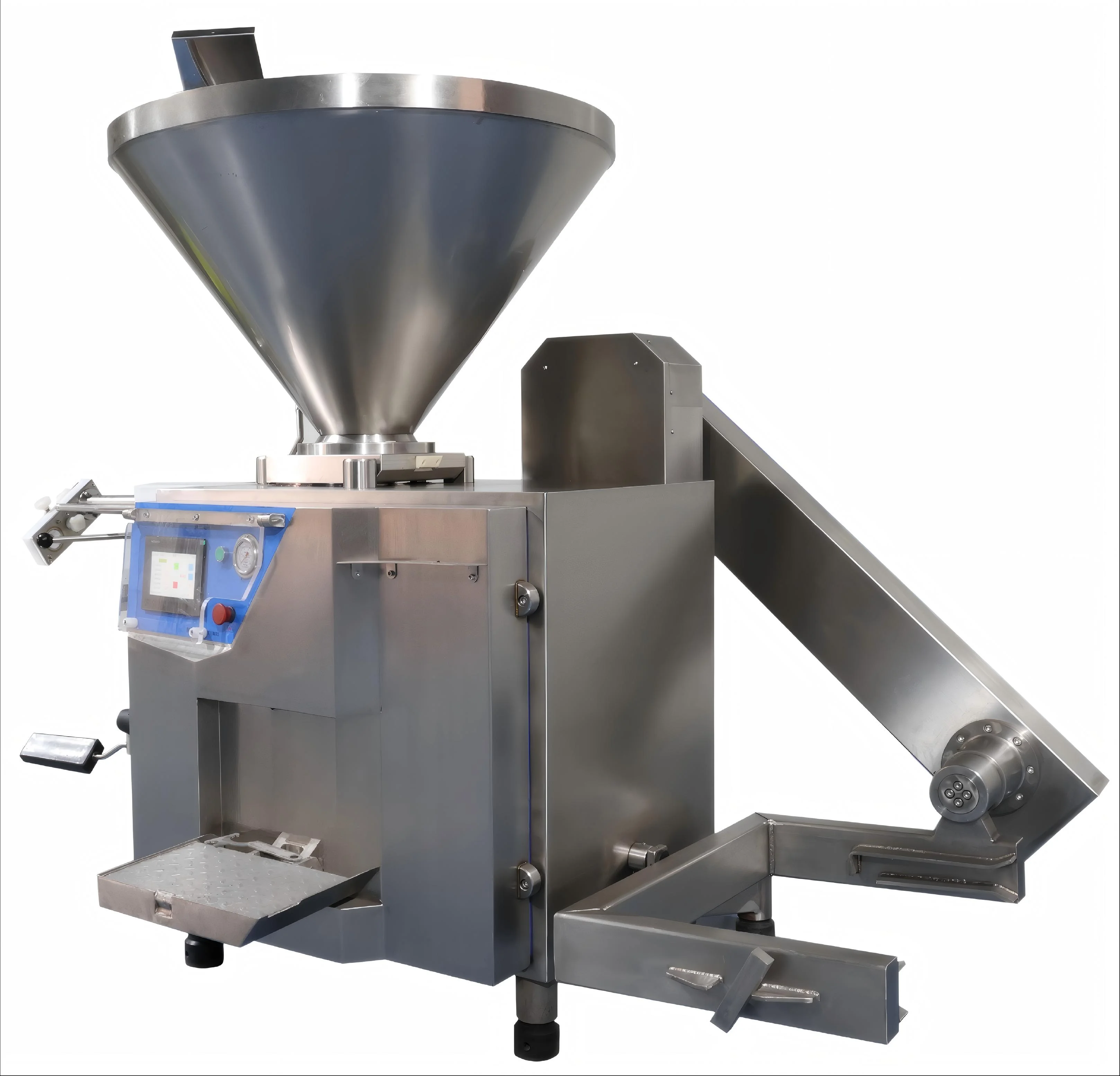

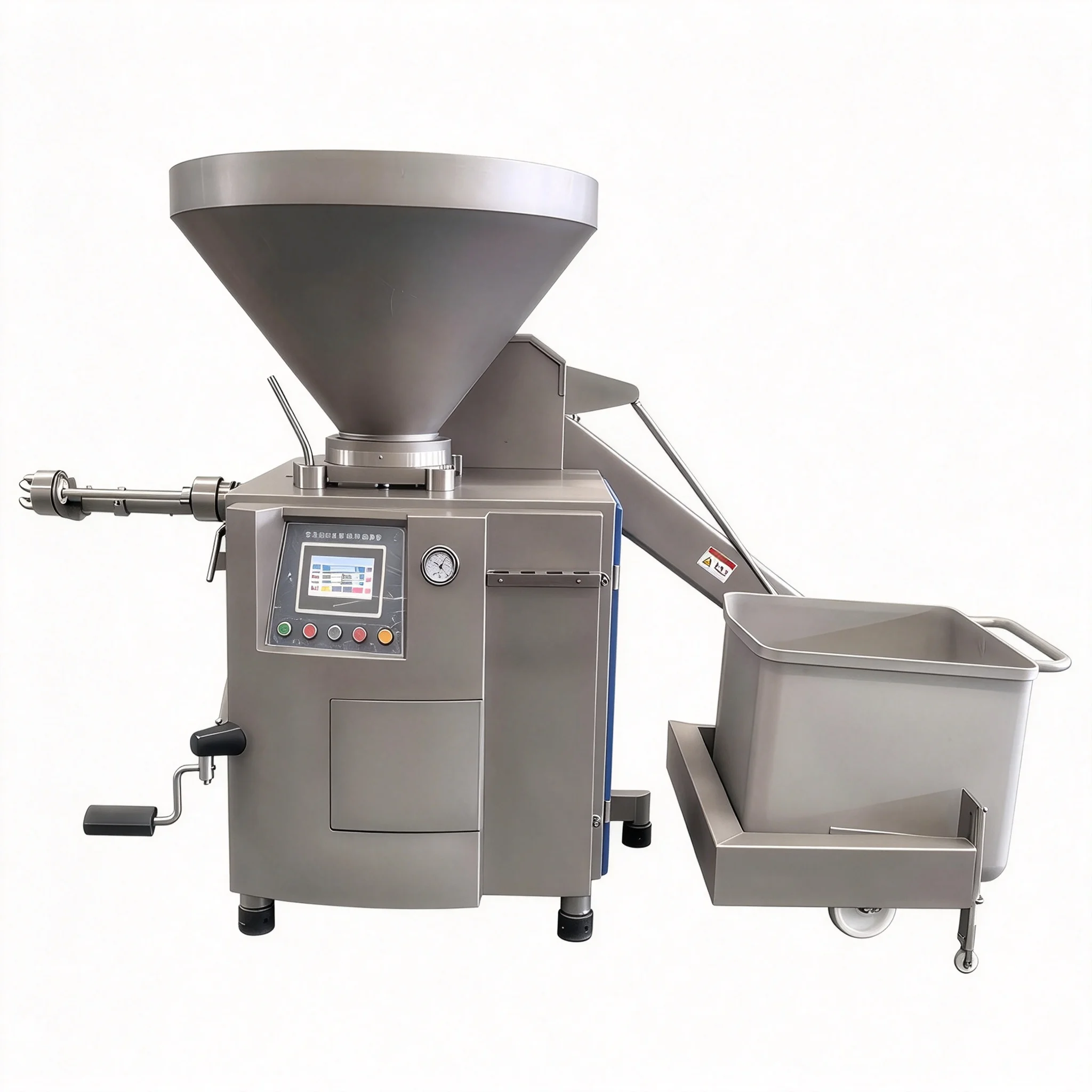

2.BG-6000 industrial sausage vacuum stuffer, SUS304 stainless steel sausage filling machine

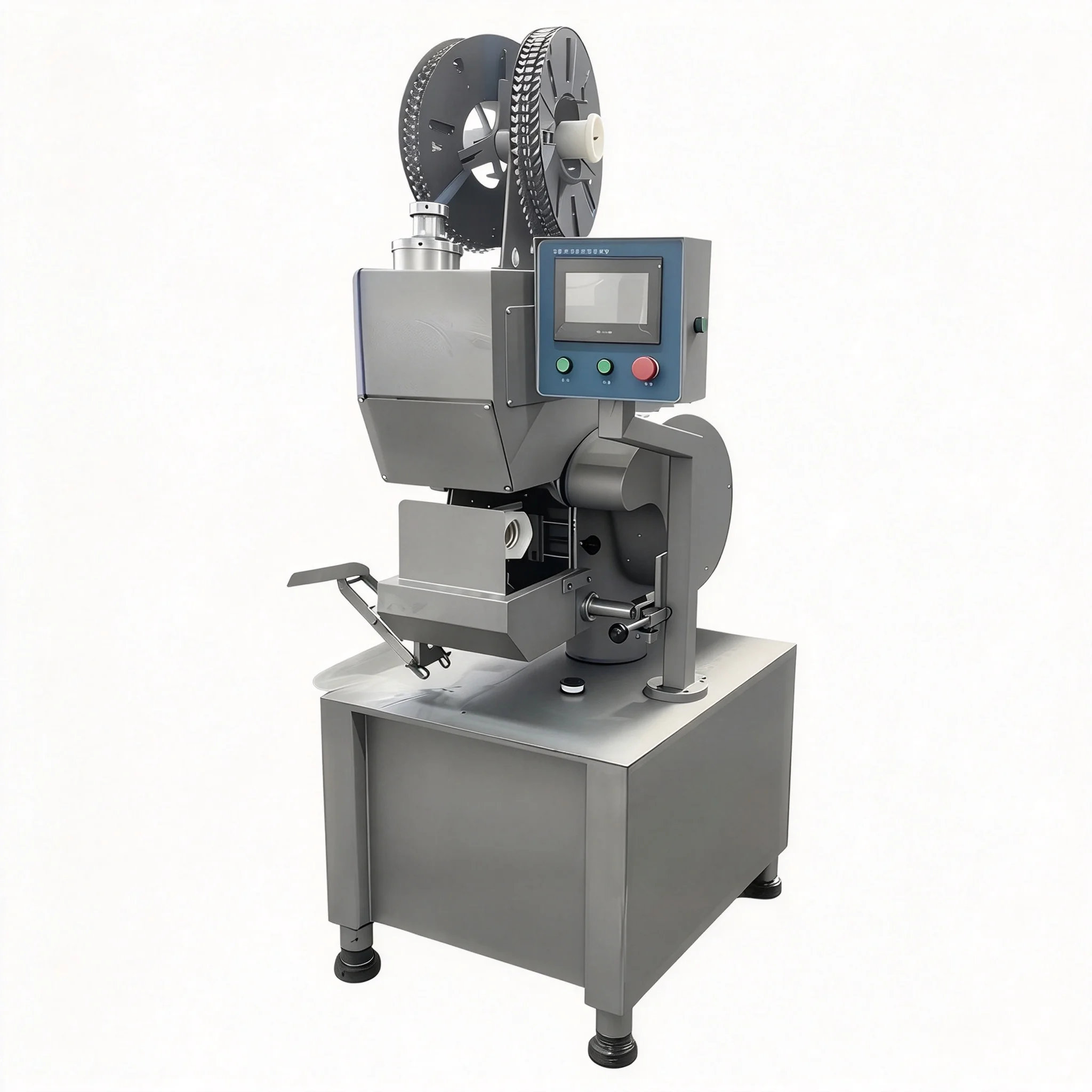

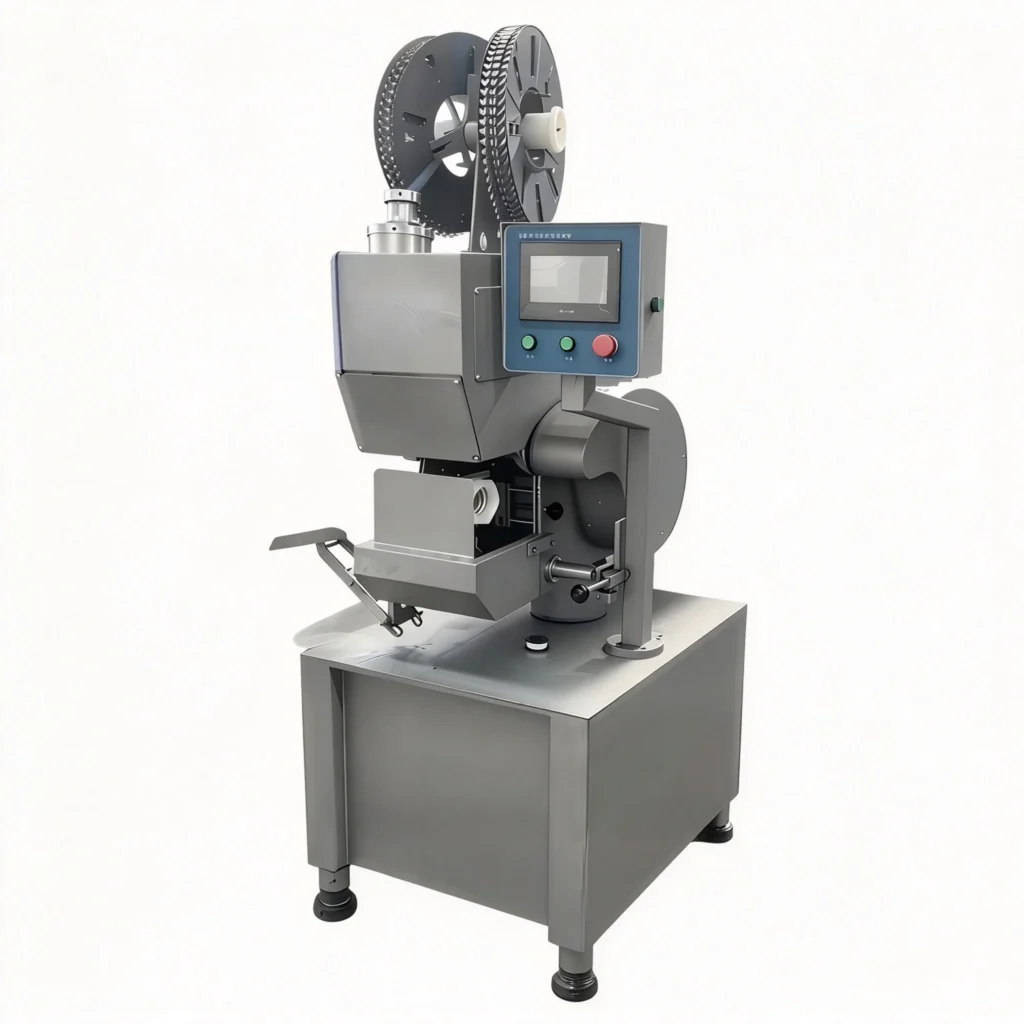

3.CSK-15 automatic sausage clipper, servo motor sausage clipping machine for nylon film casing

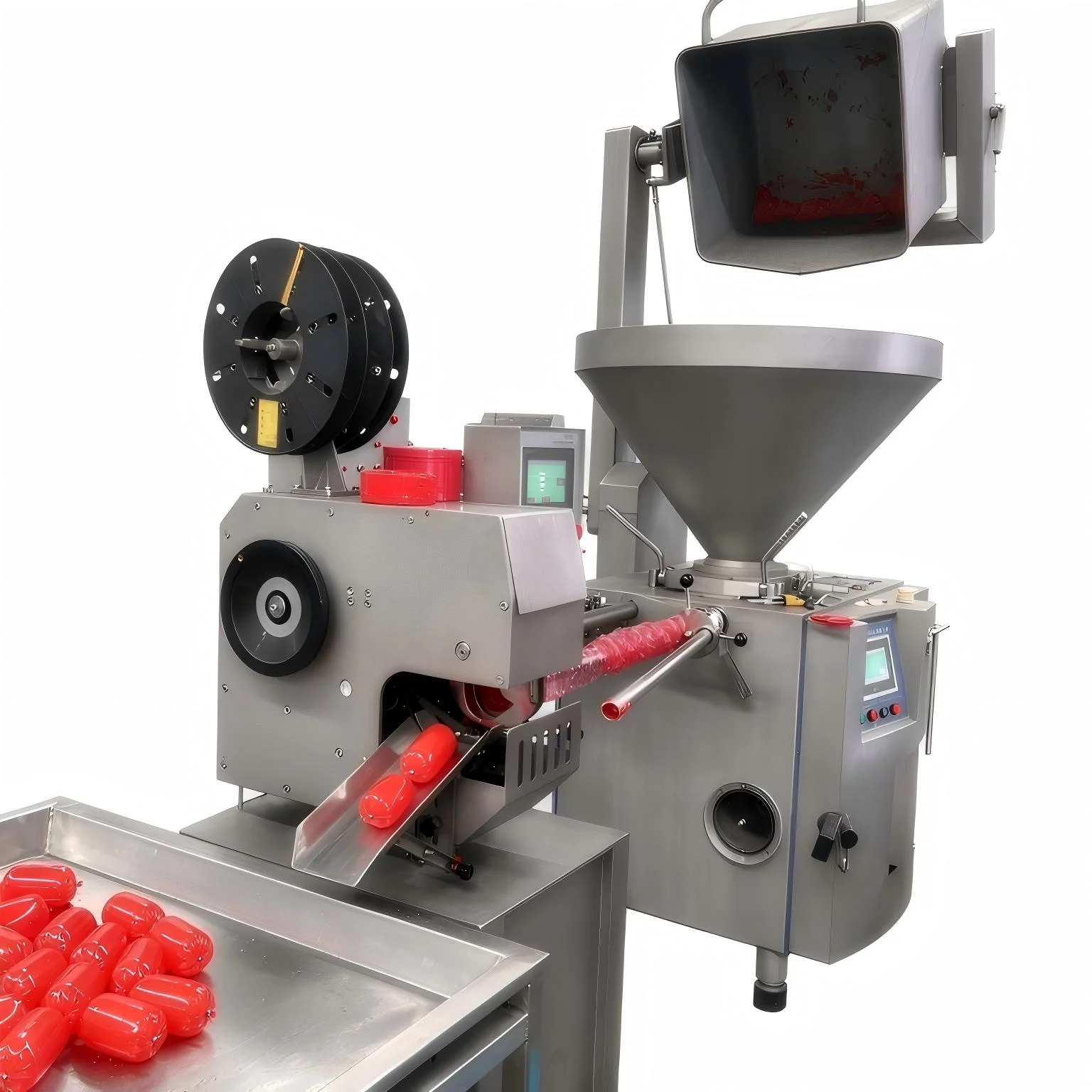

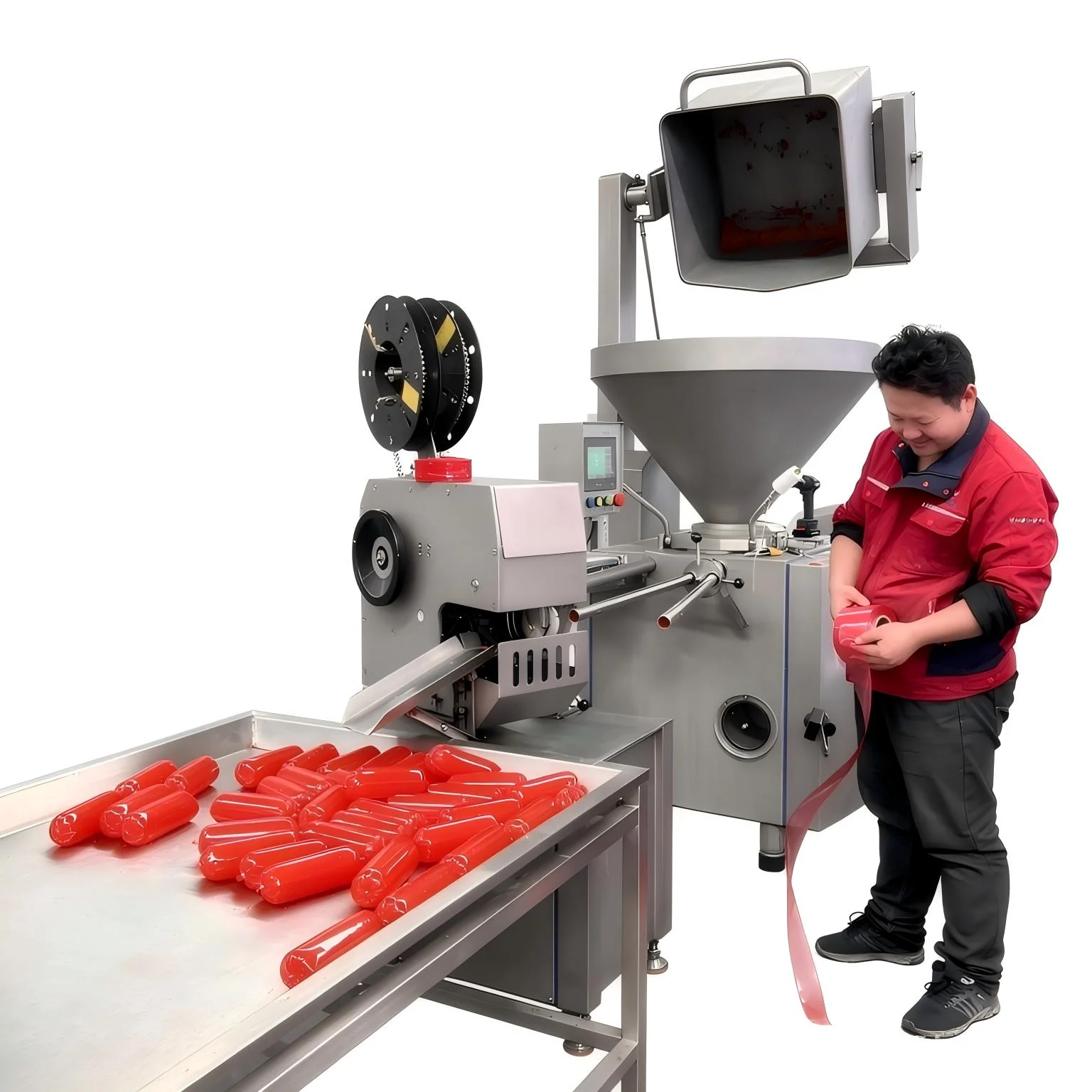

4.Side view of sausage filling and clipping production line for meat processing plant

5.Finished ham sausage made by vacuum stuffer and clipper machine

6.BG-6000 & CSK-15 sausage machine technical specification sheet

PRODUCT PARAMETERS

Sausage Vacuum Stuffer & Sausage Clipper

Industrial-grade sausage filling and clipping machine, widely used in meat processing plant. Custom voltage for Latin-America & Southeast Asia market.

Key Features:

Full SUS 304 stainless steel for food contact part, easy to clean.
Stable running, low noise.
Voltage & frequency customizable: 50 Hz or 60 Hz.
Simple operation, easy maintenance.
CE available.

REQUEST A QUOTE

Description

Request A Quote

Description

Industrial sausage vacuum stuffer and clipper made of SUS304. Support 50Hz /60Hz custom voltage. Suitable for meat processing factory.

Technical Data:

Sausage Vacuum Stuffer
Model:BG-6000
Power: 7kw /220v/60hz/3 phases
Filling capacity:3500-6000kg/h
Quantitative accuracy:±1g
Hopper volume:200L
Kink speed:0-500times/min
Quantitative Range:6~9999g
Center height:980~1030mm(adjustable)
Maximum vacuum degree:-0.1Mpa
Machine Weight: 950kg
Machine size:1980×1125×1780mm

Sausage Clipper
Model: CSK-15
Center height adjustable up to 980mm
Production speed: Maximum 120 cycles per minute per machine (recommended 70-80 cycles per minute)
Motor Power: 1.5KW Servo Motor
Power supply: 220V/60HZ/Single phase
Air Source Working Pressure: 0.5-0.6 MPa
Air Consumption: 0.3 m³/hour
Suitable for casings: nylon film, nylon composite film, PVDC film, and other specifications
Machine weight: 500kg
Dimensions: 850*900*1800mm

Application:

Suitable for meat factory, frozen food plant, slaughter house, food processing workshop. Works for sausage, ham, hot dog, composite film sausage production.

Package & Shipping:

Export standard wooden case packing.
Suitable for sea freight.
Lead time：20-30 working days.

FAQ:

Q1: What sausage casings can this clipping machine use?

A1: It works for nylon casing, nylon composite film, PVDC film.

Q2: Can we customize the machine voltage?

A2: Yes, 50Hz/60Hz, 220V/380V/440V optional.

Q3: Is the machine CE certified?

A3: Yes, CE certificate available.

Q4: What is the production speed of the CSK-15 clipper?

A4: Max 120 cycles/min, recommended 70-80 cycles/min.
