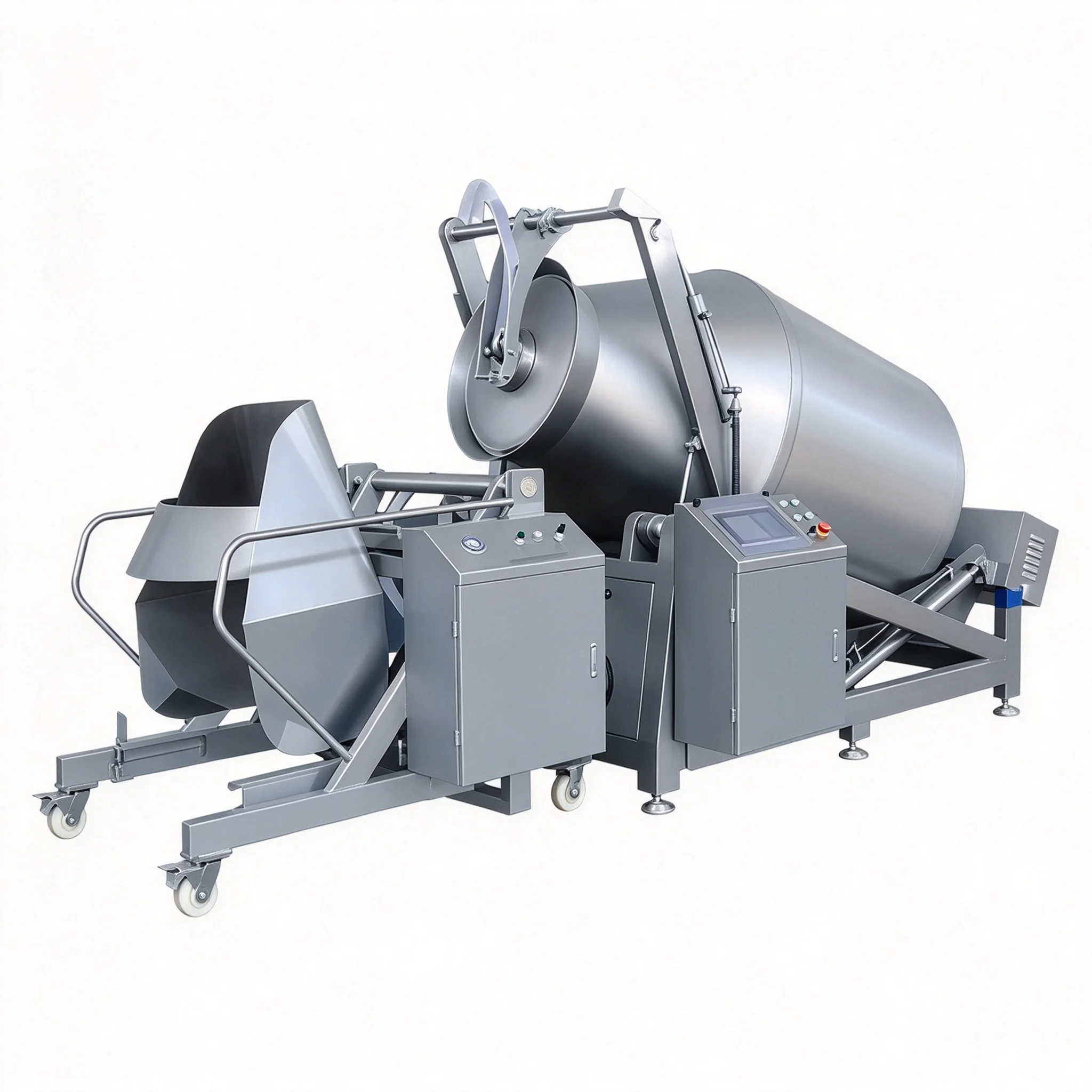

Hydraulic refrigerated vacuum tumbler BG-1700, SUS304 meat tumbling machine main view

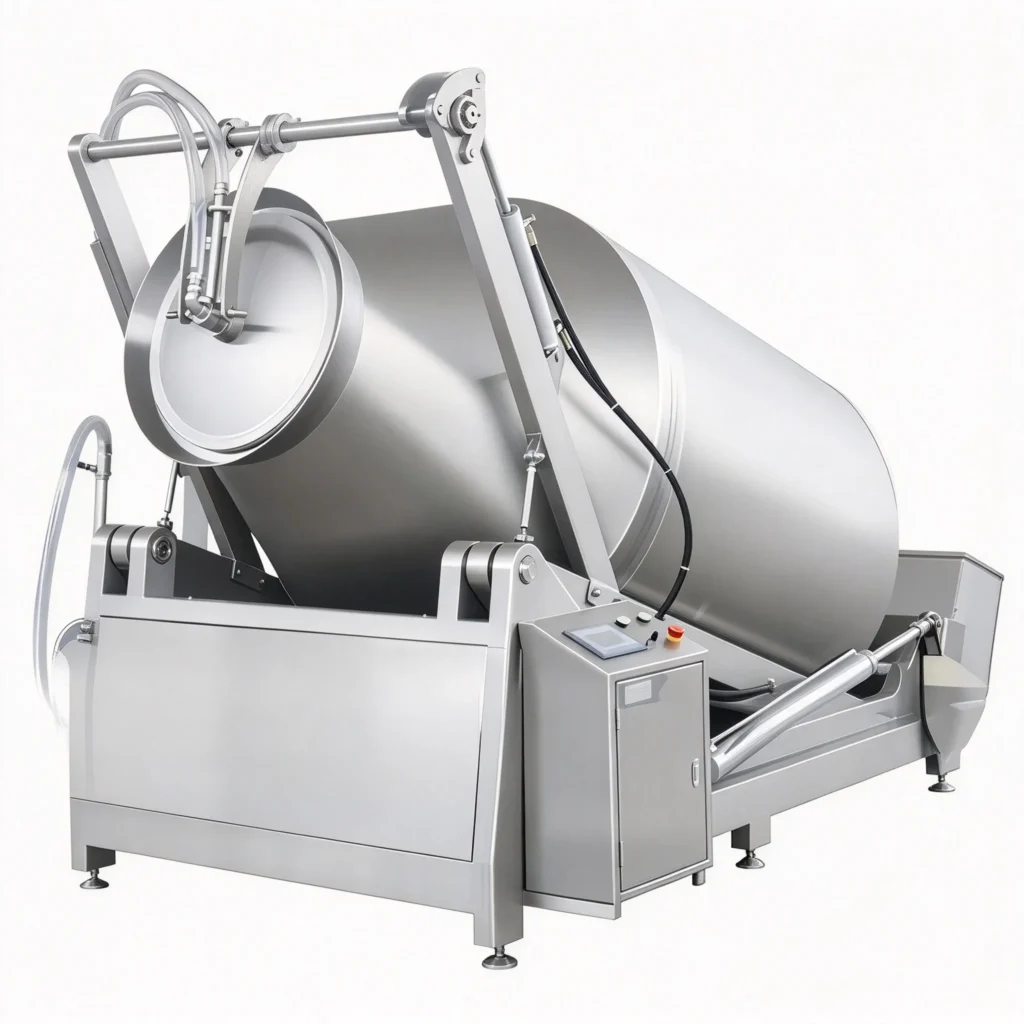

Close-up detail of vacuum tumbler tank, control panel and vacuum pipeline

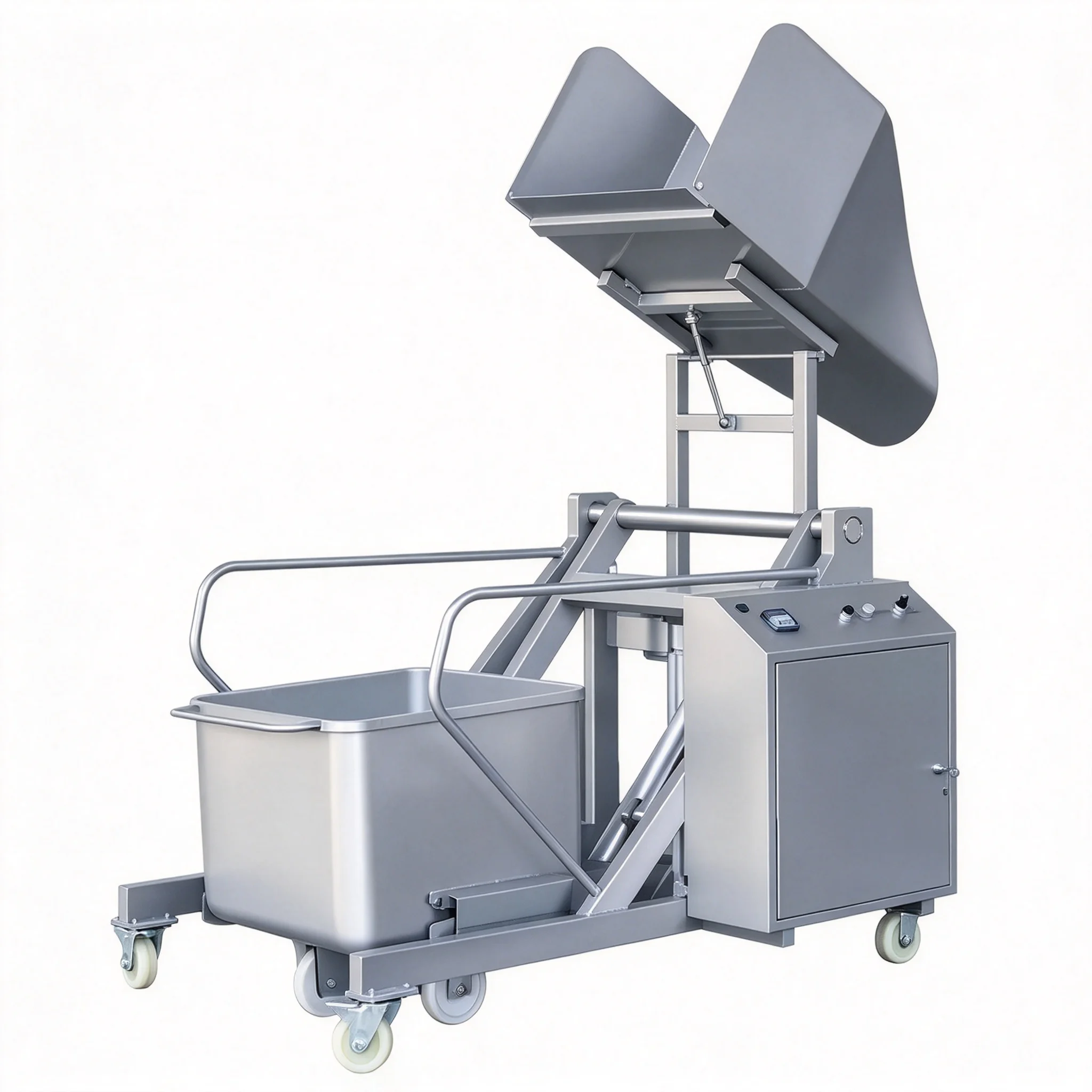

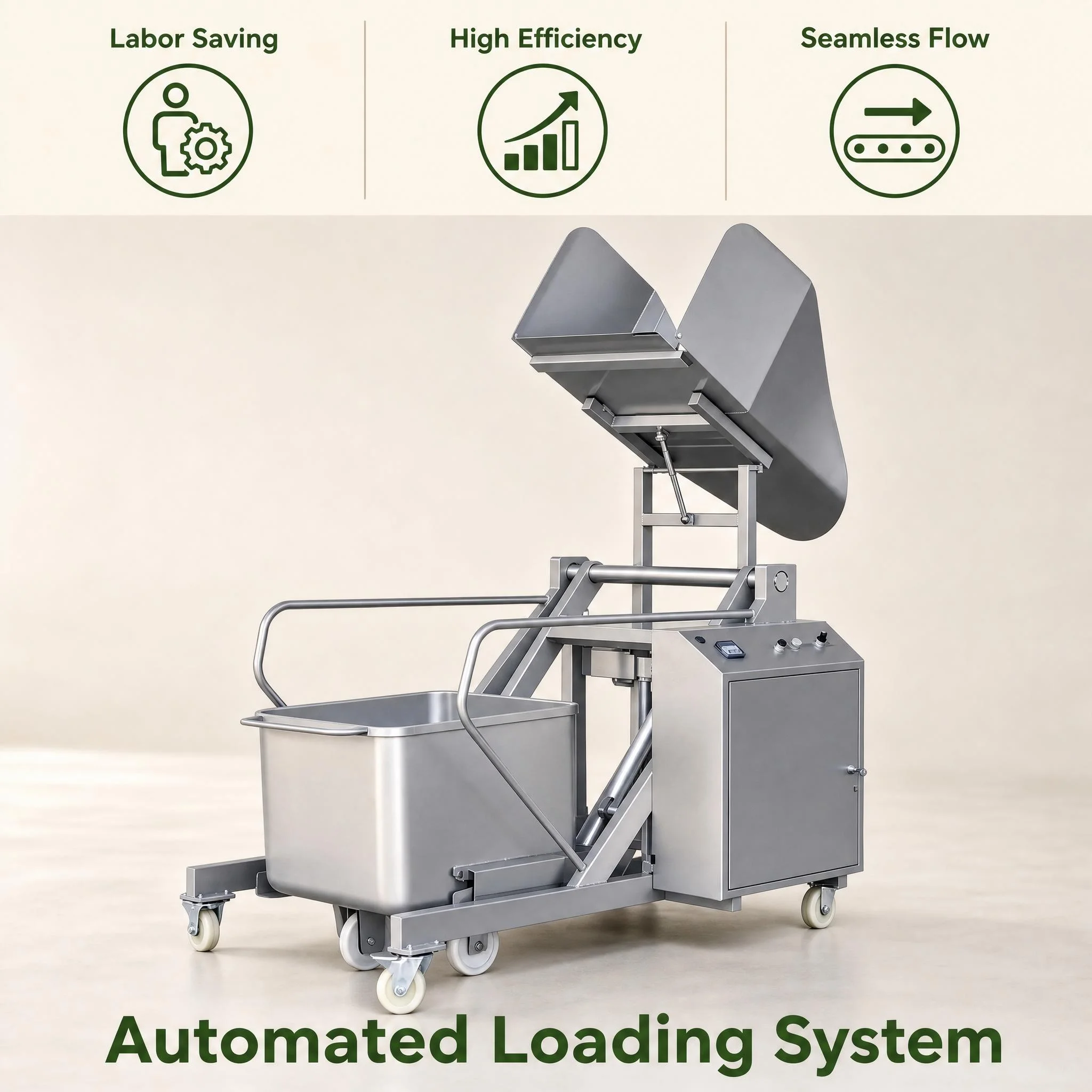

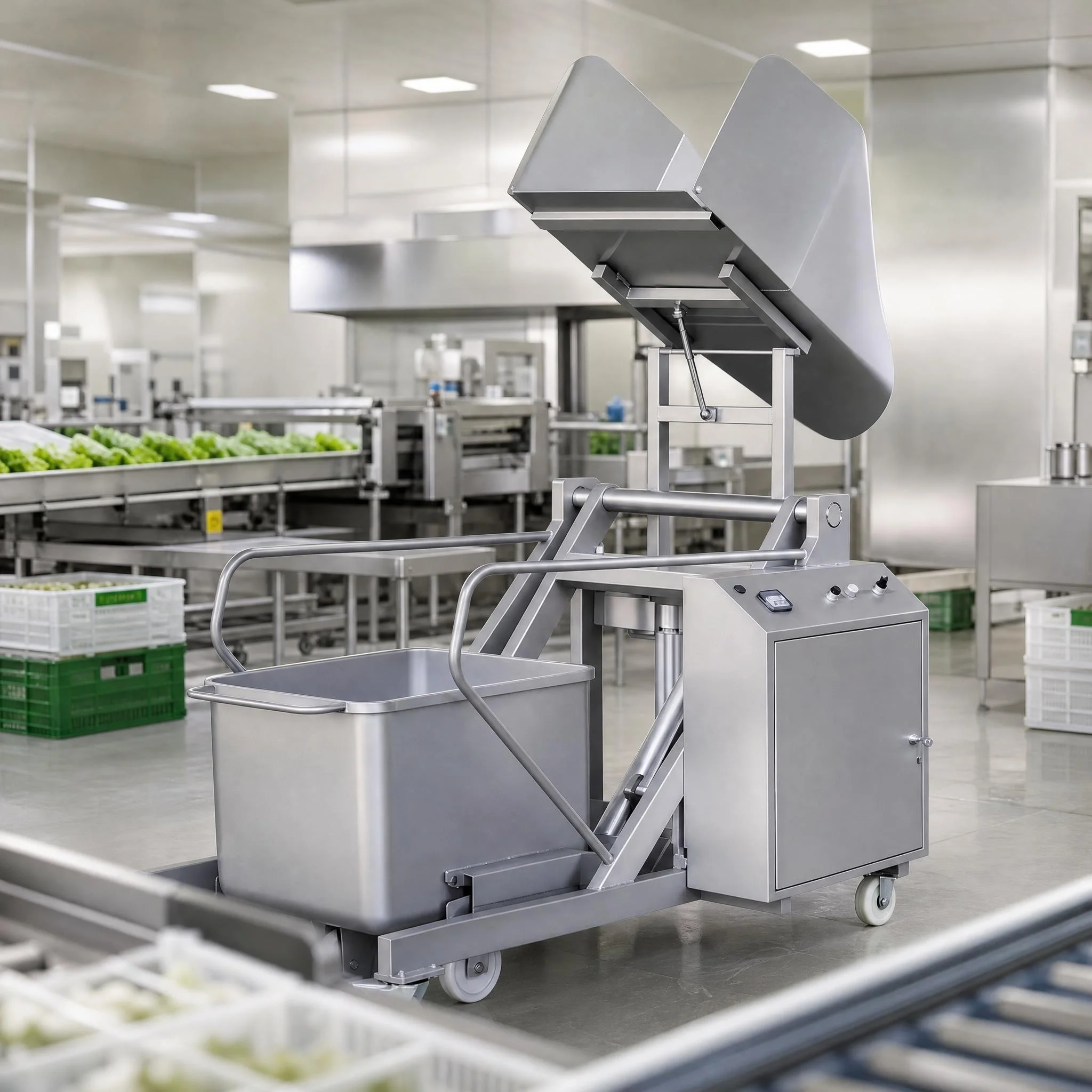

BG-1200 stainless steel hydraulic meat bucket lifter for vacuum tumbler

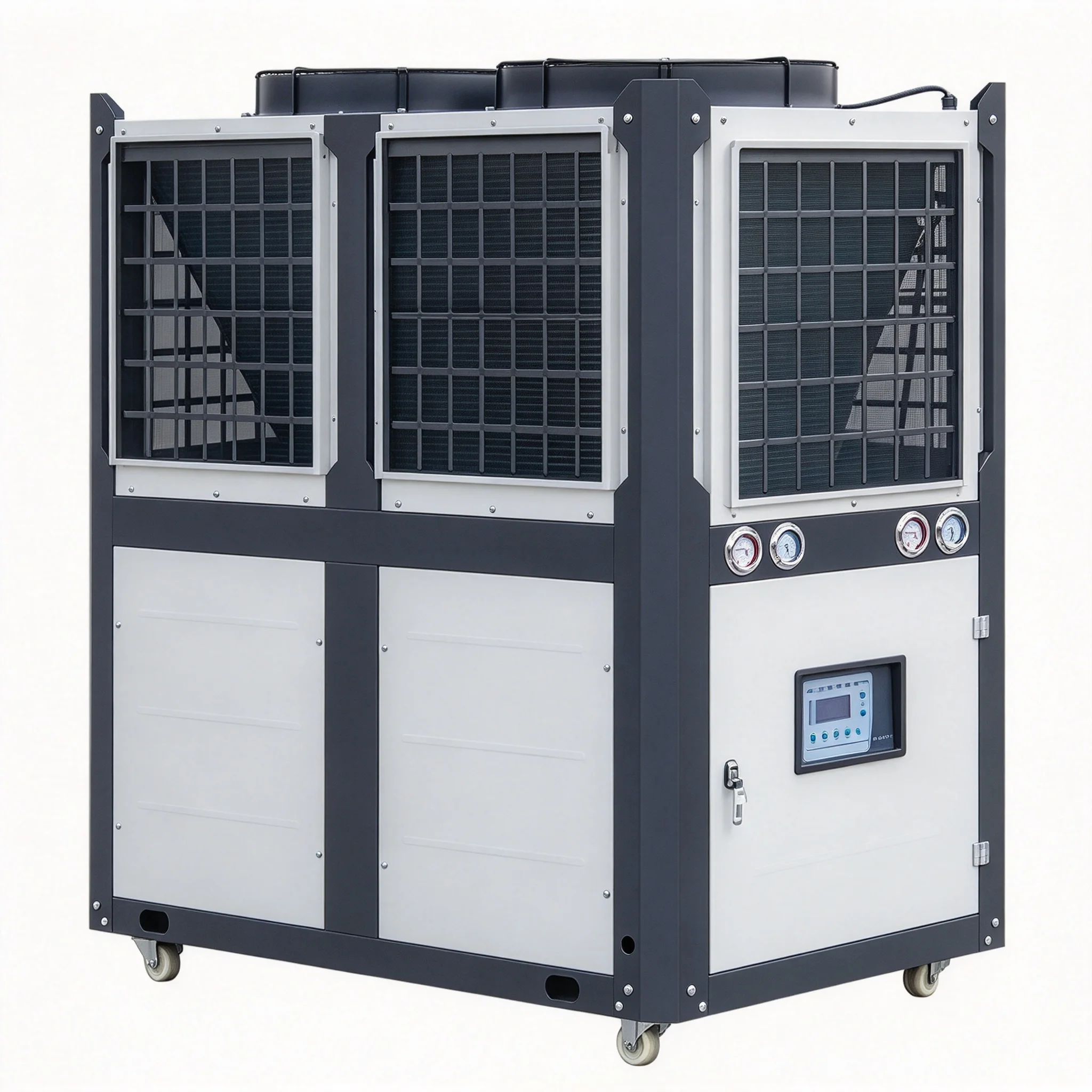

10P RSA-Z10DW refrigeration chiller unit for low temperature tumbler

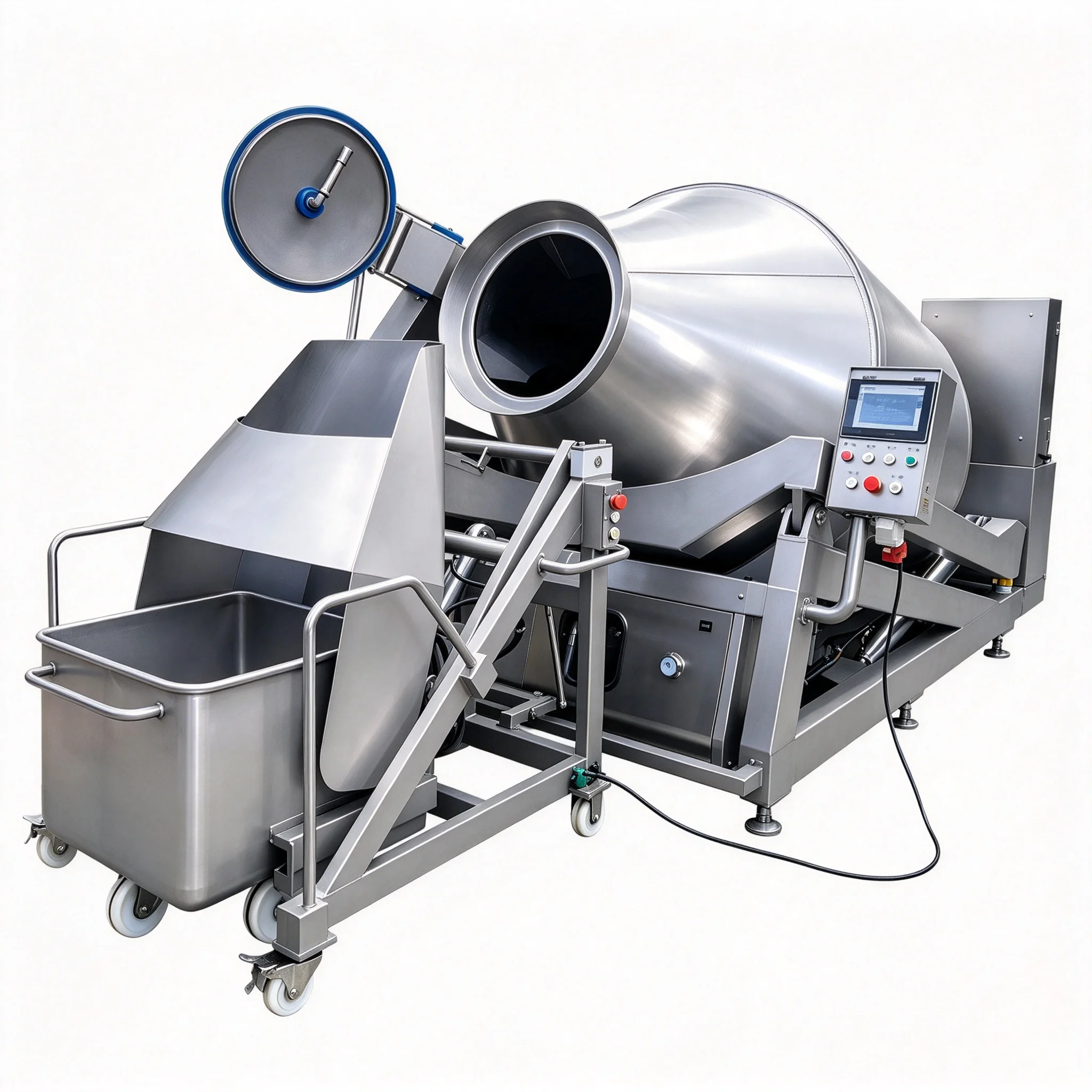

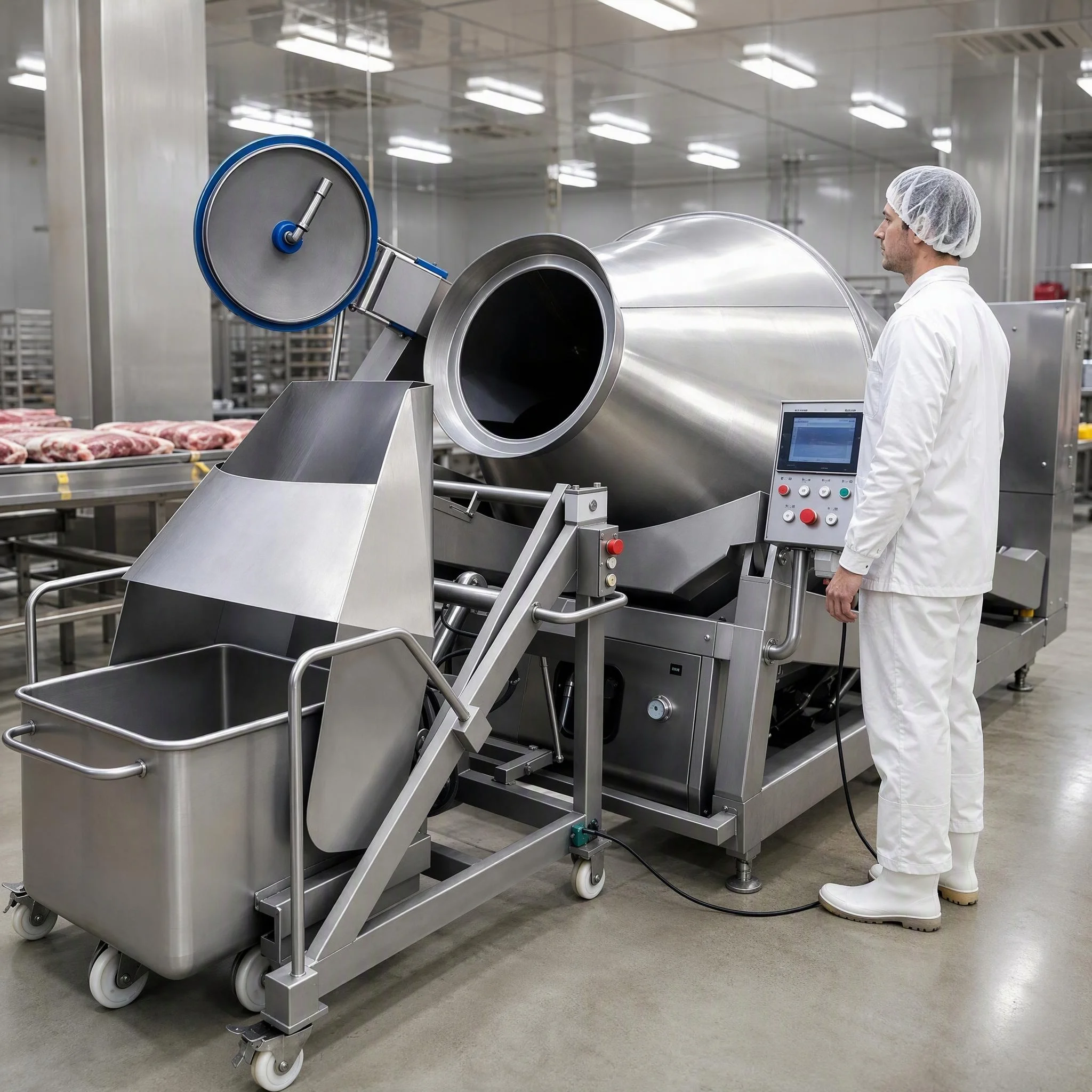

Complete set: vacuum tumbler + hydraulic loading cart for meat processing

PLC touch screen control panel of meat vacuum tumbling machine

Pressure gauge and controller detail of 10P industrial water chiller

Technical specification sheet for 1700l tumbler, loader and chiller set

PRODUCT PARAMETERS

Key Features:

Full SUS304 stainless steel for food contact part, easy to clean & meet food hygiene standard.
Built-in refrigeration system, temperature controllable from -10℃ to 10℃.
Stable running, low noise, adjustable drum speed: 2~10 rpm.
Voltage & frequency customizable: 50Hz / 60Hz (440V 3phase available).
High vacuum degree: 0~ -0.085Mpa, better meat marination effect.
Simple PLC operation, easy maintenance.
CE certification available.
1700L 2500L capacity can be optioned.

REQUEST A QUOTE

Description

Request A Quote

Description

Industrial Vacuum Tumbler with refrigeration unit made of SUS304. Support 50Hz /60Hz custom voltage, matched with hydraulic loader. Suitable for meat processing factory.

Technical Data:

Hydraulic vacuum Tumbler with refrigeration System	Model:BG-1700 Capacity:1700L Total Power:7.55kw Voltage: 440V/60HZ/3phase Drum speed: 2-10rpm Diameter of drum: 1200mm Tumbler Drum Wall Thickness: 4mm Vacuum degree:0~ -0.085Mpa Temperature control:-10~10℃ Materials: SUS 304 stainless steel. Machine weight: 1245kgs Dimensions:2594x1905x1960mm
Automatic hydraulic loader	Model: BG-1200 Lifting Height: 1950mm Lifting Capacity: 200kg Power: 0.75kw Voltage: 440V/60HZ/3phases Material: SUS304 stainless steel. Machine Weight: 220kg Dimensions: 1800×1300×2100mm
Refrigeration Unit(10P)	Model:RSA-Z10DW Cooling Capacity: 29.8kw (25628 Kcal/h) Total input: 10.1kw Voltage: 440v/60hz/3phases Refrigerating fluid: R22a/R407c/R134a/R410a Control type: External balanced thermostatic expansion valve, Electronic expansion valve. Compressor type: Hermetic scroll type (2*3.75kw) pumps or stainless steel pump (1.5kw) Dimensions: 1400x805x1630mm

Application:

Suitable for meat factory, frozen food plant, slaughter house, food processing workshop. Works for beef, pork, chicken, duck, seafood, steak, meat products marinating, tenderizing and tumbling massage.
