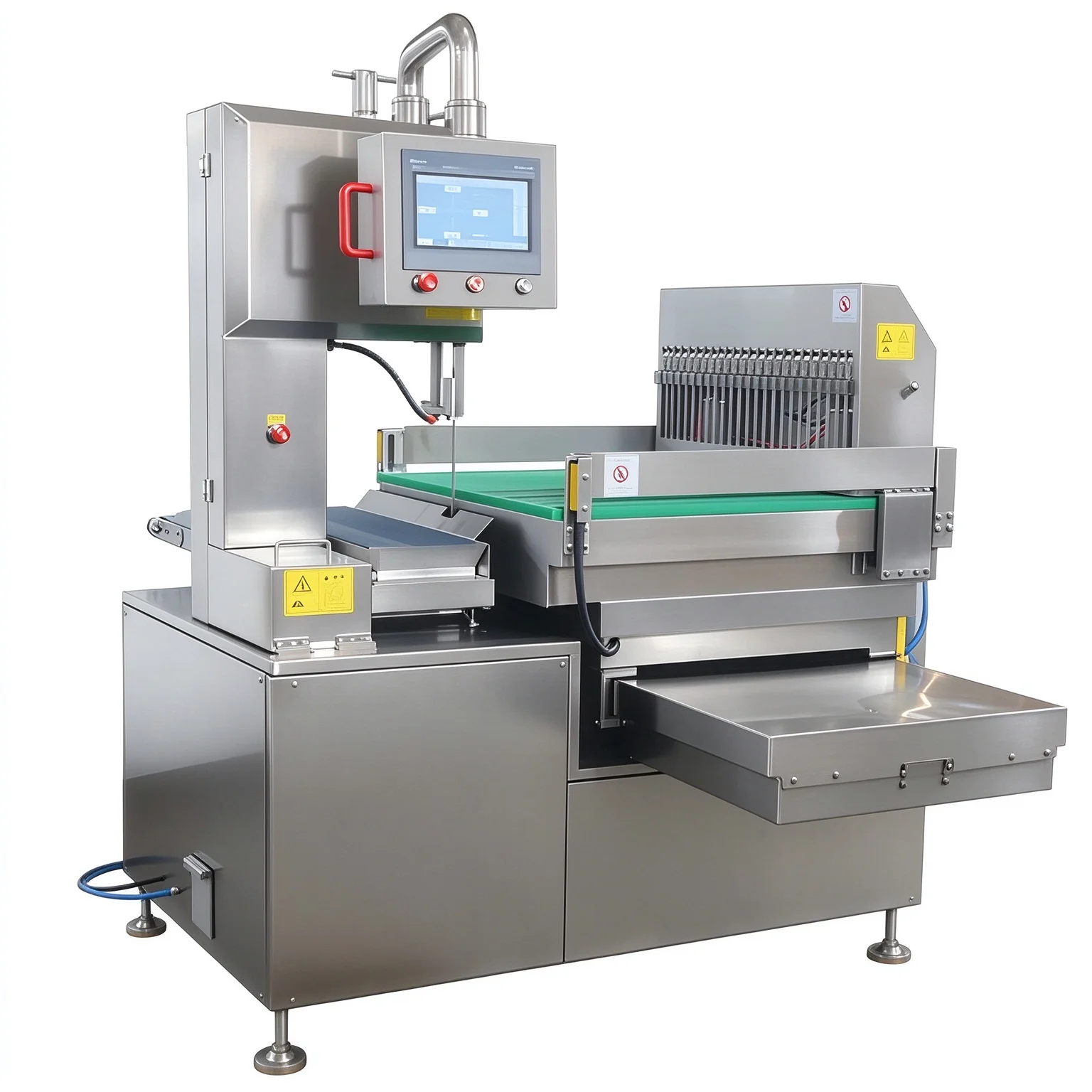

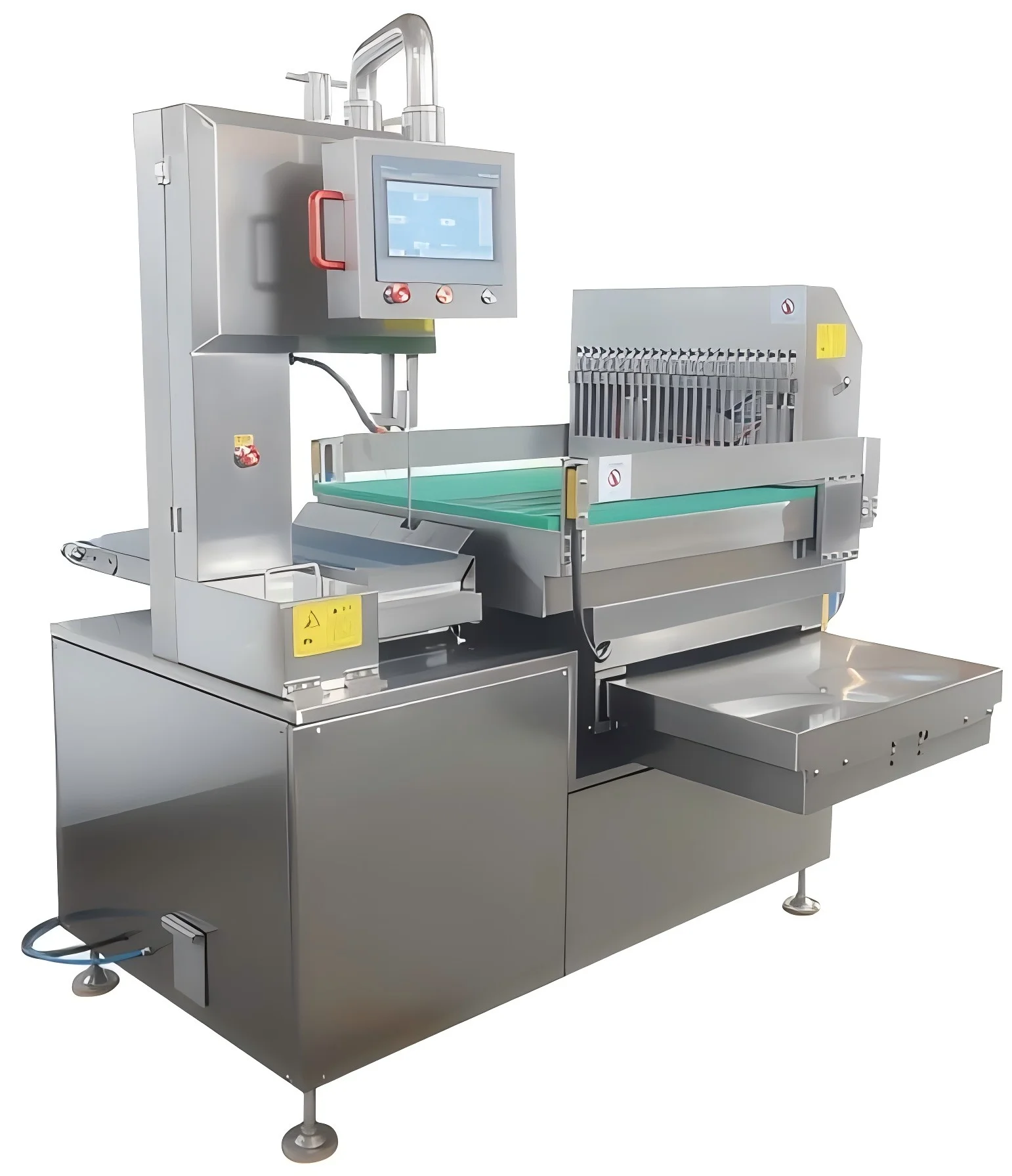

Automatic frozen bone saw machine, stainless steel frozen meat cutting machine for meat processing plant

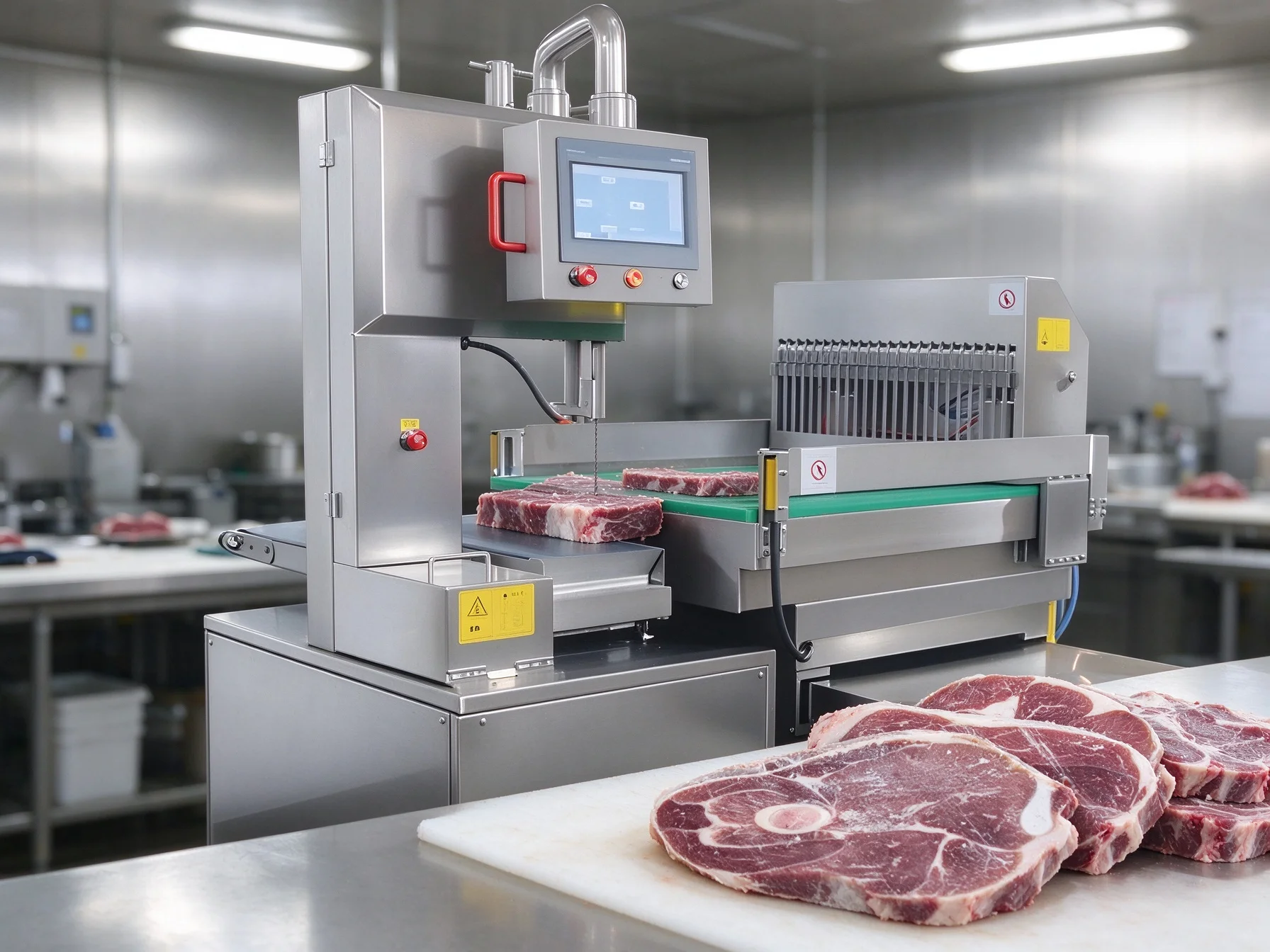

Frozen beef shank steak slices cut by automatic bone saw machine, meat processing product

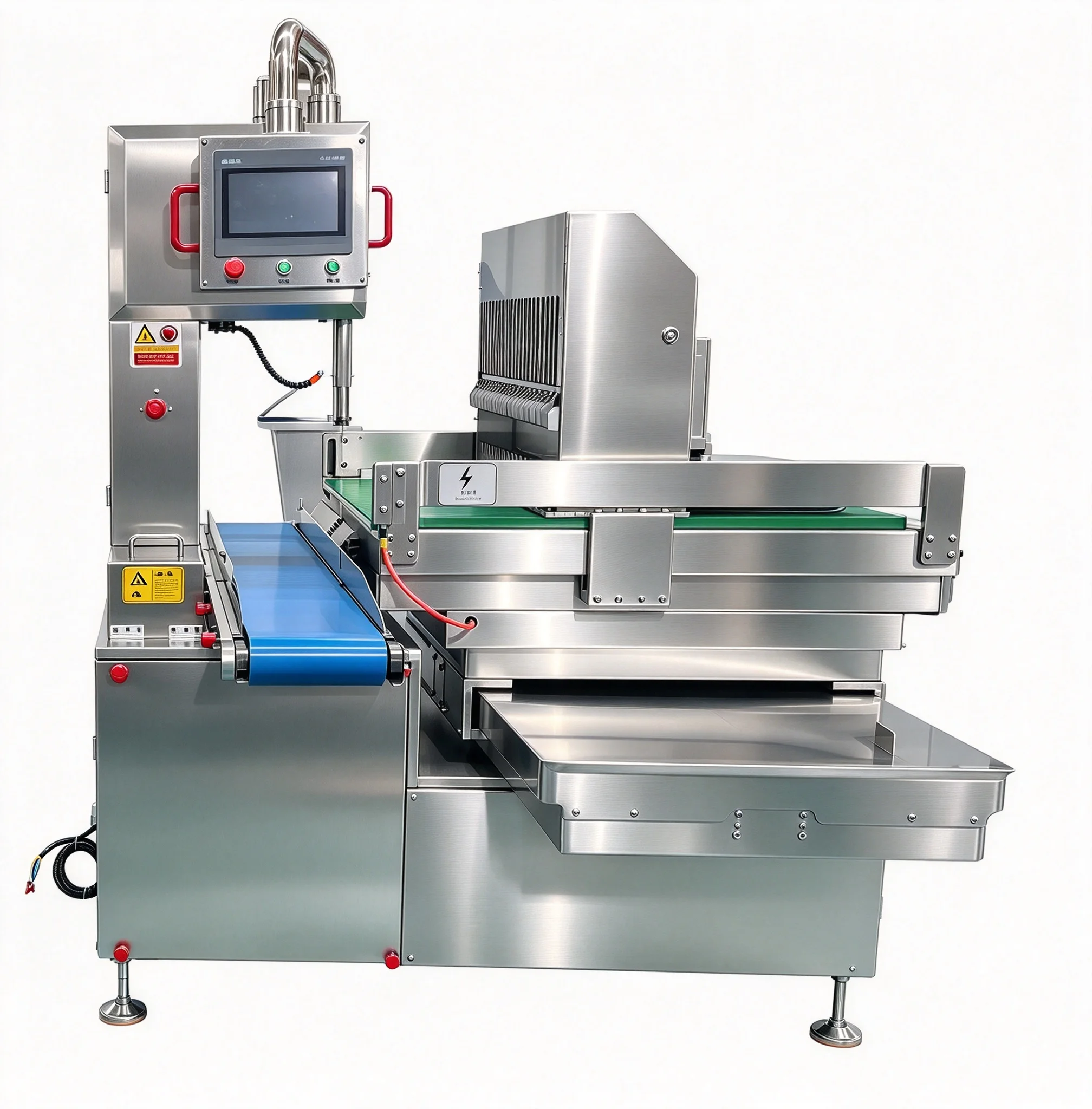

Automatic bone saw machine equipped with dual-way conveyor, designed for efficient meat processing and industrial cutting applications

Frozen whole beef shank raw material for automatic frozen bone cutting machine

Frozen bone-in beef cubes processed by automatic frozen bone saw cutter

Frozen beef marrow bone cut pieces from automatic bone cutting machine

PRODUCT PARAMETERS

Automatic Bone Sawing Machine:

Industrial-grade automatic bone cutting machine, high precision ±1.5mm cutting. Widely used in meat processing plant. Custom voltage for Latin-America & Southeast Asia market.

Key Features:

Full SUS304 stainless steel for food contact part, easy to clean.
High precision cutting accuracy up to ±1.5mm, uniform cutting result.
Top brand electric components: Siemens HMI & PLC, Schneider, Omron, NSK bearing.
Stable running, low noise, fast saw blade linear velocity at 27m/sec.
Voltage & frequency customizable: 50Hz / 60Hz, 3 phase available.
Dual-Way Conveyor is option.
Simple touch screen operation, easy maintenance.
CE available, low after-sales failure rate.

REQUEST A QUOTE

Description

Request A Quote

Description

Technical Data:

Item	Parameter
Model	BG-420S
Power	7kw
Standard Voltage	220V/60HZ/3phases，380v/50HZ/3phases
Custom Voltage	220V /440V optional, 50/60Hz
Control System	HMI touch screen +PLC programmable all-in-one machine
Working table size	800×700mm
Linear velocity	27m/sec
Cutting accuracy	±1.5mm
Cutting speed	0.03-1.2m/sec
Maximum material length	700mm
Maximum material width	800mm
Cutting height	160mm
Cutting width	1-200mm
Single-tooth saw blade spec	3200×16×0.56×4T
Double-tooth saw blade spec	3200×19×0.56×4T
Air pressure	0.4Mpa
Worktable height	960mm
Weight	1000kg
Dimension(L×W×H)	1870×1760×2100mm
Main Components	Siemens Touch screen & PLC, Schneider low-voltage electrical, OMRON phase sequence protector, Japan NSK bearing, HEC servo motor, Taiwan AirTAC cylinder
Material	SUS304 Stainless Steel

Application：

Suitable for meat factory, frozen food plant, slaughter house, food processing workshop.
Works for frozen bone, beef, pork, chicken, lamb and other meat with bones.

Package & Shipping：

Export standard wooden case packing.
Suitable for sea freight.
Lead time：15-25 working days.

After-sales Support:

English operation manual.
Remote online training.
Spare-parts supply all the year.
Technical support online.

FAQ

Q1: What materials can this automatic bone sawing machine cut? A1: It cuts frozen meat, beef bones, pork bones, ribs and other meat products for meat factories.

Q2: What material is the machine made of? A2: Food contact parts adopt SUS304 stainless steel, hygienic and easy to clean.

Q3: Can voltage and frequency be customized? A3: Yes, custom 50Hz /60Hz voltage available for global markets.

Q4: What’s the cutting accuracy? A4: Stable cutting with high precision, less meat loss.

Q5: Warranty and after-sales service? A5: 1-year warranty for core parts, online technical support and spare parts supply.

Q6: Is CE certificate available? A6: Yes, CE certificate can be provided.

Q7: How about packing for shipment? A7: Export fumigated wooden case, suitable for sea freight
